Home PD Power Adapter 20W USB C PD 3.0 Charger UL FCC For Ipad Iphone 12 Mini
Product Details:
| Place of Origin: | China |
| Brand Name: | Fullpower |
| Certification: | FCC,UL,CE,UKCA,SAA,KC,PSE,CCC,etc |
| Model Number: | DO03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Packaging Details: | Individul Pe Bag Packing or others |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000PCS/Day |
|
Detail Information |
|||
| Item: | 20W UL FCC Liste Home Charger Pd 3.0 Usb C | Input: | 100-240V 50/60HZ |
|---|---|---|---|
| Output: | PD: 5V3A, 9V2.22A, 12V1.67A | AC Plug: | AU EU US UK |
| DC Connector: | Customized | USB Type: | USB-C |
| Material: | ABS+PC | Color: | Black, White Or Others |
| Protection: | OCP, OLP, OVP And Others | Logo: | Fullpower Or Custom Make |
| Warranty: | 3 Years | ||
| High Light: | UL PD Power Adapter,Ipad PD Power Adapter,20W USB C PD 3.0 Charger |
||
Product Description
20W UL FCC Liste Home Charger Pd 3.0 Usb C Fast Charger 20 W For Ipad Iphone 12 Mini
Shenzhen Yingyuan electronics Co.,ltd
| Data-sheet |
| FEATURES | SAFETIES APPROVALS | PRODUCTS PICTURE | ||||
|
v EFFICIENCY VI v 20W PD OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v Many colors for choice |
v UL,FCC v CB,CE,UKCA v SAA,PSE,CCC,KC v REACH, ROHS
|
 |
||||
| TYPICAL MODEL LIST | ||||||
| I/P Voltage | Typical model | Output Voltage | Output Current | Ripple & noise | Efficiency Level | |
|
90 - 264V 47 - 63HZ |
DO03 | 5V | 3000mA | 30mV | 6 L VI | |
| DO03 | 5V | 3000mA | 30mV | 6 L VI | ||
| DO03 | 9V | 2220mA | 40mV | 6 L VI | ||
| DO03 | 9V | 2220mA | 40mV | 6 L VI | ||
| DO03 | 12V | 1670mA | 50mV | 6 L VI | ||
| DO03 | 12V | 1670mA | 50mV | 6 L VI | ||
| INPUT SPECIFICATIONS | GENERAL SPECIFICATIONS | |||||
| Input Voltage | 90〜264VAC | Primary to Secondary | 50MΩ MIN | |||
| Input Frequency | 47〜63Hz | Efficiency | VI | |||
| Input Current | 0.5A Max | Standby Power | 0.2W MAX | |||
| Inrush Current | 40A Max | Leakage Current | 0.25mA MAX | |||
| OUTPUT SPECIFICATIONS | ENVIRONMENTAL SPECIFICATIONS | |||||
| Output Voltage Range | 5V / 9V / 12V | Operating Temperature | 10°C~40°C | |||
| Output Current Range | 100mA-3000mA | Cooling | Convection | |||
| Output Power Range | 20W Max | Temperature Coefficient | 0.05%/°C | |||
| Short Circuit Protection | Automatic Recovery | Humidity | 5~95%RH(non-condensing) | |||
| Over-Current Protection | Automatic Recovery | Storage Temperature | -20°C~+80%°C | |||
| Ripple and Noise | 100mVp-p max | PHYSICAL SPECIFICATIONS | ||||
| Turn On Time | 20-30mS normal | Physical Specifications | 43mm *28mm *41mm | |||
| Line Regulation | 1% max | SAFETIES STANDARD | ||||
| Output Regulation | ±5% | Safeties Standard | 62368 / 60950 / 61558 | |||

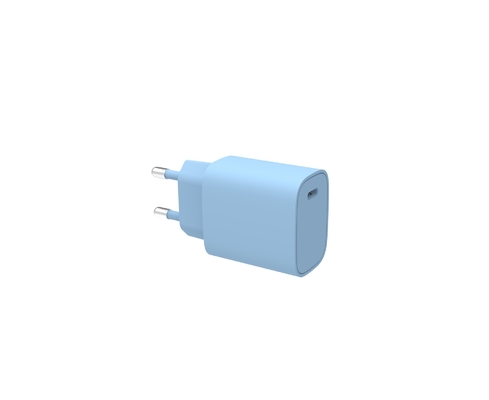

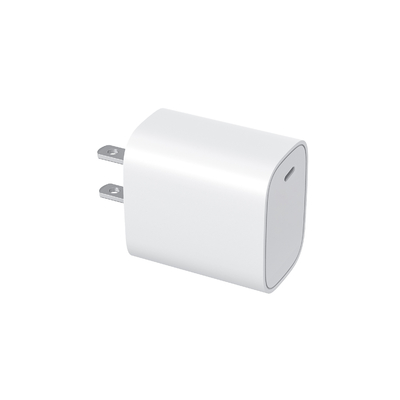

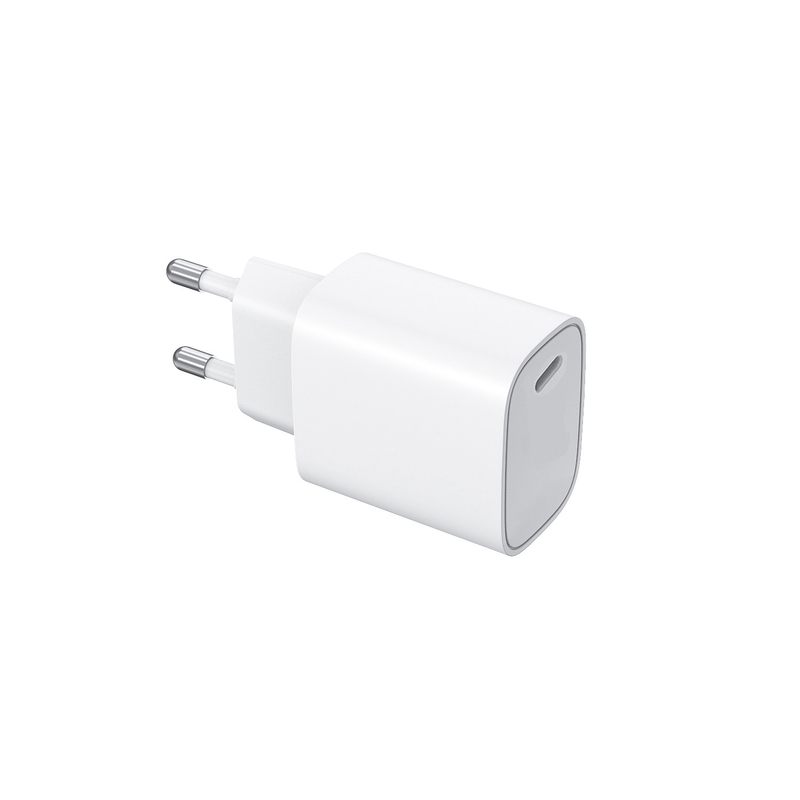

| Product Pictures |
|
|
| Certification |
|
FQA:
: Are there any certificates for your products?
A:All of our products pass the RoHS 2.0 certification, all the accessorythat is designed for Apple devices have the MFi certification. We alsoprovide specific certifications for related oversea markets: FCC andAmazon UL for the USA, UKCA for the UK,CE for Europe,PSE forJapan, etc.
:Any patent for Vention products?
A: More than 200 product patents has been acquired which includesmultiple industrial design patent and patent for utility models.
: Shipment method?
A: a.International express: DHL/TNT/FEDEX/UPS(For sample)
b.By air(For trial orders)
c.By sea(15-45 days)d.By domestic logistics
;How long will it take for shipment?
A;: For the sample shipment, it will usually takes 3-5 days for domesticdistributors and around 15 days for international post delivery.Largeproduct order will be uncertain due to the different custom clearancesituation.
: Where is your factory located?
A : Our factory is located in Guangdong and Jiangxi Provinc-es of China.
