36W AC DC Switching Adapter 3A 2A 4A 12V Universal AC Power Adapter
Product Details:
| Place of Origin: | China |
| Brand Name: | Fullpower |
| Certification: | FCC,UL,CE,UKCA,SAA,KC,PSE,CCC,etc |
| Model Number: | 16170 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Packaging Details: | Individul Pe Bag Packing or others |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000PCS/Day |
|
Detail Information |
|||
| Item: | 36W Ac Dc Switching Adapter 12v Universal | Input: | 100-240V 50/60HZ |
|---|---|---|---|
| Output: | DC 36W Max | AC Plug: | AU EU UK US CN KR |
| DC Connector: | Custom Make | Material: | ABS+PC |
| Color: | Black, White Or Others | Protection: | OCP, OLP, OVP And Others |
| Logo: | Fullpower Or Custom Make | Warranty: | 3 Years |
| High Light: | 36W AC DC Switching Adapter,4A AC DC Switching Adapter,12V Universal AC Power Adapter |
||
Product Description
36W Ac Dc Switching Adapter 12v Universal Ac Power Adapter 3a 2a 4a Rohs Reach Doe Vi
About Yingyuan
Yingyuan is a professional manufacturer with 10 years experience, has a mission of developing, manufacturing and marketing high and
stable quality rechargeable Lithium ion batteries and related products. Products including laptop batteries, tablet battery, smartphone
battery, laptop charger, power tool battery and battery pack for sweeper robot, medical device,etc. It is located in Dongguan, the world
famous manufacturing center. Possessing an independent R&D group, advanced manufacturing factory, professional sales and aftersales
service team. So far we have developed over 3000 different replacement batteries and chargers for mainly cellphone, tablet pc, laptop
and power tool brands.
| Data-sheet |
| FEATURES | SAFETIES APPROVALS | PRODUCTS PICTURE | |||||
|
v AU US UK EU CN JP KR Plugs v EFFICIENCY VI v 30-36 WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT |
Multi-blade Type
v UL,FCC v CB,CE,UKCA v SAA,PSE,CCC,KC,BIS,BSMI v REACH, ROHS |
 |
|||||
| TYPICAL MODEL LIST | |||||||
| I/P Voltage | Typical model | Output Voltage | Output Current | Ripple & noise | Efficiency Level | ||
|
90 - 264V 47 - 63HZ |
ICP36-050-5000 | 5V | 5000mA | 90mV | L 6.0 | ||
| ICP36-090-3000 | 9V | 3000mA | 90mV | L 6.0 | |||
| ICP36-120-3000 | 12V | 3000mA | 120mV | L 6.0 | |||
| ICP36-150-2400 | 15V | 2400mA | 120mV | L 6.0 | |||
| ICP36-180-2000 | 18V | 2000mA | 150mV | L 6.0 | |||
| ICP36-240-1500 | 24V | 1500mA | 150mV | L 6.0 | |||
| INPUT SPECIFICATIONS | GENERAL SPECIFICATIONS | ||||||
| Input Voltage | 90〜264VAC | Primary to Secondary | 50MΩ MIN | ||||
| Input Frequency | 47〜63Hz | Efficiency | VI | ||||
| Input Current | 1.2A Max | Standby Power | 0.30W MAX | ||||
| Inrush Current | 40.0A Max | Leakage Current | 0.25mA MAX | ||||
| OUTPUT SPECIFICATIONS | ENVIRONMENTAL SPECIFICATIONS | ||||||
| Output Voltage Range | 5V-36.0V | Operating Temperature | 10°C~40°C | ||||
| Output Current Range | 100mA-5000mA | Cooling | Convection | ||||
| Output Power Range | 36.0W Max | Temperature Coefficient | 0.05%/°C | ||||
| Short Circuit Protection | Automatic Recovery | Humidity | 5~95%RH(non-condensing) | ||||
| Over-Current Protection | Automatic Recovery | Storage Temperature | -20°C~+80%°C | ||||
| Ripple and Noise | 100mVp-p max | PHYSICAL SPECIFICATIONS | |||||
| Turn On Time | 20-30mS normal | Physical Specifications | 97.6mm *45.6mm *32.6mm | ||||
| Line Regulation | 1% max | SAFETIES STANDARD | |||||
| Output Regulation | ±5% | Safeties Standard | 62368 / 60950/ 60335/ 61558/ 60065 | ||||

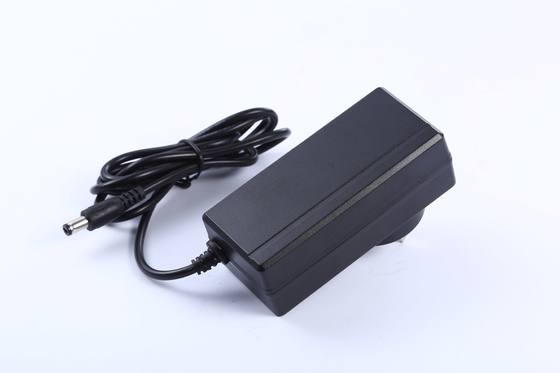

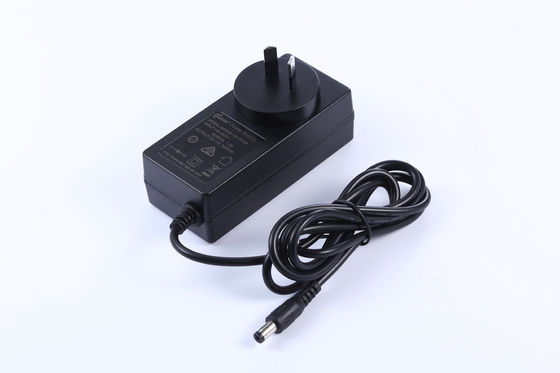

| Product Pictures |
|
|
| Product Certification |
|
FQA:
1. Are you a manufacturer?
Yes, we are a professional power adapter manufacturer since 2006.
2. What is the application of your products?
Our power supply is suitable for charging LED strip, LED lamps, IT products, security camera, printers, large projectors, smart home, home appliances, set-top box and beauty equipment, etc.
3. What kinds of certification do you have?
We have passed UL, CUL, ETL, FCC, CE, GS, KC, KCC, CB, PSE, SAA, C-Tick, BIS, IRAM & CCC certifiation for a series of private
moulds.
4. Is sample orderacceptable? If yes, sample lead time?
Yes, sample order acceptable. Sample lead time is 3-7 days if no special requirements.
