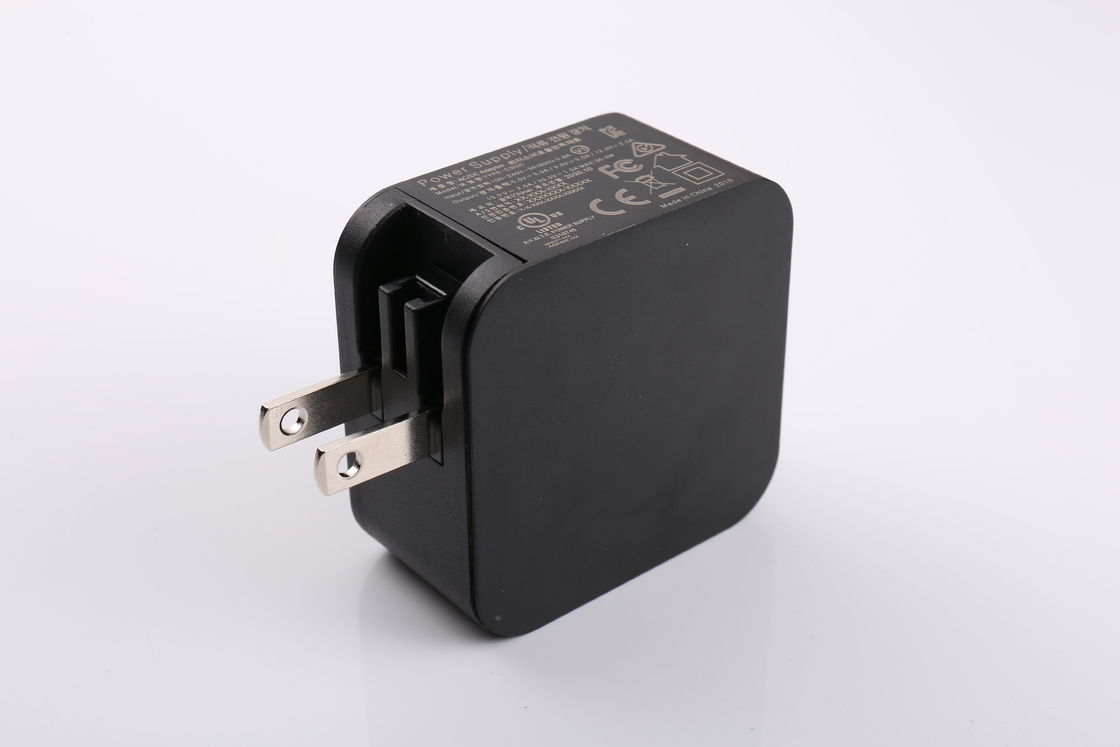

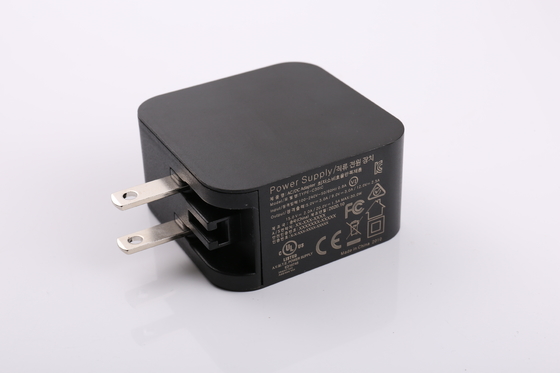

AC DC PD USB Wall Charger Max Output 30W Protection OCP OVP OLP
Product Details:
| Place of Origin: | China |
| Brand Name: | Fullpower |
| Certification: | FCC,UL,CE,UKCA,SAA,KC,PSE,CCC,etc |
| Model Number: | C1802 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Packaging Details: | Individul Pe Bag Packing or others |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000PCS/Day |
|
Detail Information |
|||
| Input: | 100-240V 50/60HZ | Output: | PD 30W: 5V 9V 12V 15V 20V |
|---|---|---|---|
| USB Type: | USB-C | Material: | ABS+PC |
| Color: | Black, White Or Others | Protection: | OCP, OLP, OVP And Others |
| Logo: | Fullpower Or Custom Make | Warranty: | 3 Years |
| High Light: | OCP USB Wall Charger,OVP USB Wall Charger,OLP USB Wall Charger |
||
Product Description
PD Adapter AC DC 30W Reverse Polarity Protection OCP OVP OLP Max Output 30W
| Characteristic | |
| 1.Capablebattery slots monitors and charges independently; | 2.Automatically identifies Li-ion,Ni-MH and Ni-Cd rechargeable batteries; |
| 3.Features three charging m of charging 2 batteries simultaneously; | 4.Automatically detects battery status and selects the appropriate voltage and charge mode; |
| 5.Automatically stops charging when complete; | 6. Features reverse polarity protection; |
| 7.Designed for optimal heat dissipation; | 8.certified by both RoHs Reach. |
| 9. Interchangeable Plug for changing | 10. OCP, OVP, OLP, SCP protection |
| Data-sheet |
| FEATURES | SAFETIES APPROVALS | PRODUCTS PICTURE | ||||
|
v EFFICIENCY VI v 30W PD OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v Interchangeable AC plugs |
Interchangeable Plug v UL,FCC v CB,CE,UKCA v SAA,PSE,CCC,KC v REACH, ROHS
|
 |
||||
| TYPICAL MODEL LIST | ||||||
| I/P Voltage | Typical model | Output Voltage | Output Current | Ripple & noise | Efficiency | |
|
90 - 264V 47 - 63HZ |
C802 | 5V | 3000mA | 30mV | 6 VI Level | |
| C802 | 9V | 3000mA | 30mV | 6 VI Level | ||
| C802 | 12V | 2000mA | 40mV | 6 VI Level | ||
| C802 | 15V | 2000mA | 40mV | 6 VI Level | ||
| C802 | 20V | 1500mA | 50mV | 6 VI Level | ||
| C802 | 5V | 3000mA | 50mV | 6 VI Level | ||
| INPUT SPECIFICATIONS | GENERAL SPECIFICATIONS | |||||
| Input Voltage | 90〜264VAC | Primary to Secondary | 50MΩ MIN | |||
| Input Frequency | 47〜63Hz | Efficiency | VI | |||
| Input Current | 0.5A Max | Standby Power | 0.2W MAX | |||
| Inrush Current | 40A Max | Leakage Current | 0.25mA MAX | |||
| OUTPUT SPECIFICATIONS | ENVIRONMENTAL SPECIFICATIONS | |||||
| Output Voltage Range | 5V/ 9V/ 12V/ 15V/ 20V | Operating Temperature | 10°C~40°C | |||
| Output Current Range | 100mA-3000mA | Cooling | Convection | |||
| Output Power Range | 30W Max | Temperature Coefficient | 0.05%/°C | |||
| Short Circuit Protection | Automatic Recovery | Humidity | 5~95%RH(non-condensing) | |||
| Over-Current Protection | Automatic Recovery | Storage Temperature | -20°C~+80%°C | |||
| Ripple and Noise | 100mVp-p max | PHYSICAL SPECIFICATIONS | ||||
| Turn On Time | 20-30mS normal | Physical Specifications | 53mm *53mm *28mm | |||
| Line Regulation | 1% max | SAFETIES STANDARD | ||||
| Output Regulation | ±5% | Safeties Standard | 62368 / 60950 / 61558 | |||
| Advantage: | |
| 1.Quality control: Every products pass 6 strict testing process | 2.Use the high quality and high capacity |
| 3.Long standby time,long warranty, long life | 4.Very compatitive price |
| 5.Fast delivery,we can accept DHL,EMS,FEDEX,etc. | 6. UL,FCC,CE,CB,UKCA,SAA,KC,PSE,CCC,EAC etc for different countries |
| Certifications |
|
Factory Certification
ISO 9001 Quality management system
ISO 14001 Environment management system
BSCI Business Social Compliance Initiative Certificate
|
|
|
Safety Certificates
UL, FCC, CB, CE, UKCA, EAC, CCC, PSE, KC, KCC, RCM, C-TICK, SAA, BSMI, BIS etc
|
|
Factory |
|
| FQA |
| Q: What is your MOQ? A: 1K PCS MOQ less than 65W, 500 pcs MOQ for 90W to 120W, 50 pcs MOQ for more that 300W Q: How about warranty? A : Warranty is 3 years . Q: What is the payment methord ? A: 1.Small quantity: 100% advanced before shipment. Large quantity: should be paid before delivery. 3. We accept T/T, Paypal, and Western Union Q : what is the lead time ? A : Samples 3-5 days . Mass products 25-30 working days Q: How about sample? A: Small QTY and small power samples could be free, Large QTY or high power product sample is not free. |
Want to Know more details about this product
