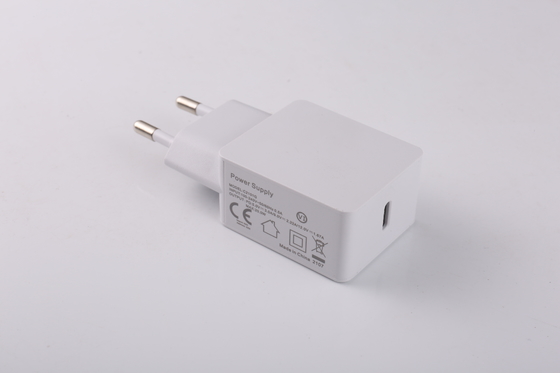

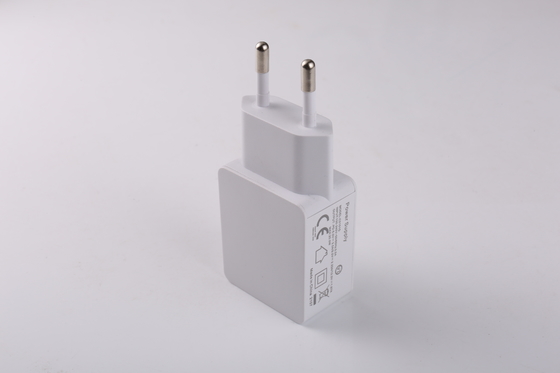

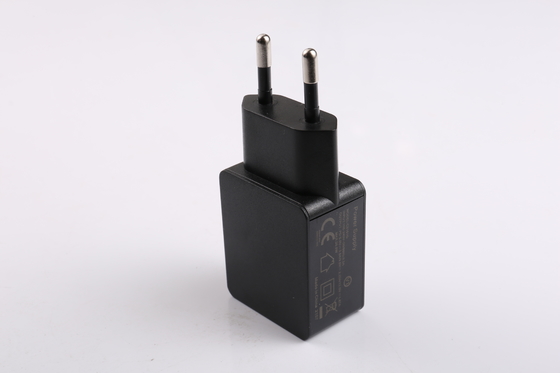

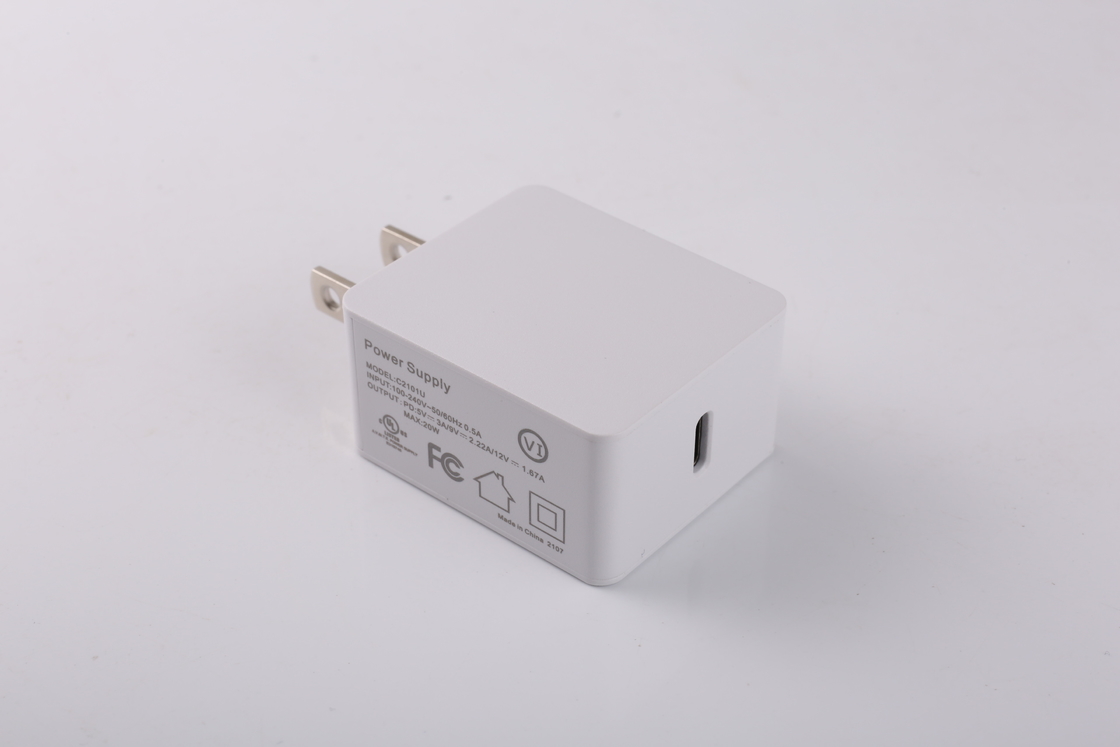

• 20W PD Power Adapter OUTPUT 5V 9V 12V US EU UK AU Plug USB C PD Charger
  • 20W PD Power Adapter OUTPUT 5V 9V 12V US EU UK AU Plug USB C PD Charger
  • 20W PD Power Adapter OUTPUT 5V 9V 12V US EU UK AU Plug USB C PD Charger
  • 20W PD Power Adapter OUTPUT 5V 9V 12V US EU UK AU Plug USB C PD Charger
20W PD Power Adapter OUTPUT 5V 9V 12V US EU UK AU Plug USB C PD Charger

20W PD Power Adapter OUTPUT 5V 9V 12V US EU UK AU Plug USB C PD Charger

Product Details:

Place of Origin: China
Brand Name: Fullpower
Certification: FCC,UL,CE,UKCA,SAA,KC,PSE,CCC,etc
Model Number: C2101

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Packaging Details: Individul Pe Bag Packing or others
Delivery Time: 30 working days
Payment Terms: T/T, Western Union
Supply Ability: 100000PCS/Day
Get Best Price Contact Now

Detail Information

Input: 100-240V 50/60HZ Output: PD: 5V3A, 9V2.22A, 12V1.67A
USB Type: USB-C Material: ABS+PC
Color: Black, White Or Others Protection: OCP, OLP, OVP And Others
Logo: Fullpower Or Custom Make Warranty: 3 Years
Item: 20W PD POWER ADAPTER USB C CHARGER PD OUTPUT AC Plug: US EU Plug
DC Connector: Customized
High Light:

20W PD Power Adapter

,

5V PD Power Adapter

,

12V USB C PD Charger

Product Description

                        20W PD POWER ADAPTER USB C CHARGER PD OUTPUT 5V 9V 12V US EU UK AU PLUG



About Yingyuan

Our factory is focusing on researching and manufacturing mobile phone accessories since 2006,and now we have developed into a mature and

modern factory by continuously learning andsumming up experience.The factory covers a total area of 14,500 square meters with 800 staffs,and

passed the certification of BSCl, and GB/T19001-2008/ISO 9001:2008 as well. ln order toprovide better customer service, we have one-stop service

from graphic design, packagingdesign, 3D mold design, PCB design, to SMT, molding injection, assemble and packing.





Data-sheet



FEATURES SAFETIES APPROVALS PRODUCTS PICTURE

v EFFICIENCY VI

v 20W PD OUTPUT POWER

v OVERCURRENT PROTECTION

v SHORT CIRCUIT PROTECTION

v INPUT PROTECTION

v Interchangeable AC plugs





v UL,FCC

v CB,CE,UKCA

v SAA,PSE,CCC,KC

v REACH, ROHS



        20W PD Power Adapter OUTPUT 5V 9V 12V US EU UK AU Plug USB C PD Charger 0
TYPICAL MODEL LIST
I/P Voltage Typical model Output Voltage Output Current Ripple & noise Efficiency

90 - 264V

47 - 63HZ

C2101 5V 3000mA 30mV 6 VI
C2101 5V 3000mA 30mV 6 VI
C2101 9V 2220mA 40mV 6 VI
C2101 9V 2220mA 40mV 6 VI
C2101 12V 1670mA 50mV 6 VI
C2101 12V 1670mA 50mV 6 VI
INPUT SPECIFICATIONS GENERAL SPECIFICATIONS
Input Voltage 90〜264VAC Primary to Secondary 50MΩ MIN
Input Frequency 47〜63Hz Efficiency VI
Input Current 0.5A Max Standby Power 0.2W MAX
Inrush Current 40A Max Leakage Current 0.25mA MAX
OUTPUT SPECIFICATIONS ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range 5V / 9V / 12V Operating Temperature 10°C~40°C
Output Current Range 100mA-3000mA Cooling Convection
Output Power Range 20W Max Temperature Coefficient 0.05%/°C
Short Circuit Protection Automatic Recovery Humidity 5~95%RH(non-condensing)
Over-Current Protection Automatic Recovery Storage Temperature -20°C~+80%°C
Ripple and Noise 100mVp-p max PHYSICAL SPECIFICATIONS
Turn On Time 20-30mS normal Physical Specifications 43.1mm *40.1mm *22.1mm
Line Regulation 1% max SAFETIES STANDARD
Output Regulation ±5% Safeties Standard 62368 / 60950 / 61558



Product Pictures

20W PD Power Adapter OUTPUT 5V 9V 12V US EU UK AU Plug USB C PD Charger 1

20W PD Power Adapter OUTPUT 5V 9V 12V US EU UK AU Plug USB C PD Charger 2

20W PD Power Adapter OUTPUT 5V 9V 12V US EU UK AU Plug USB C PD Charger 3



FQA:


1. How to gurantee the products quanlity?
1) 100% more than 2 Hour Burn-In Test
2) 100% 4 times electrical performance test
3) 100% dropping test from 6 surface
4) 100% Solder ball vibration test
5) 100% Hi-Pot Test

2. How about your after sales service?
1) We make a 100% inspection before shipping out, the warranty is 1 year.
2) The buyer enjoys after services of the guarantees for repair, replacement and compensation of faulty products, if it is not damaged by man.

3. Can you provide OEM?
Yes, we can offer OEM service. You can offer you drawing design, we are willing to make the products for you.

4. How to get the samples?
If you need samples to test, pls send your requirement to us, we would like to provide you with the free samples.
The samples need about 3days, we can send to you if you pay us express fee. Or you can provide your universal express account. We will deliver by your account.
