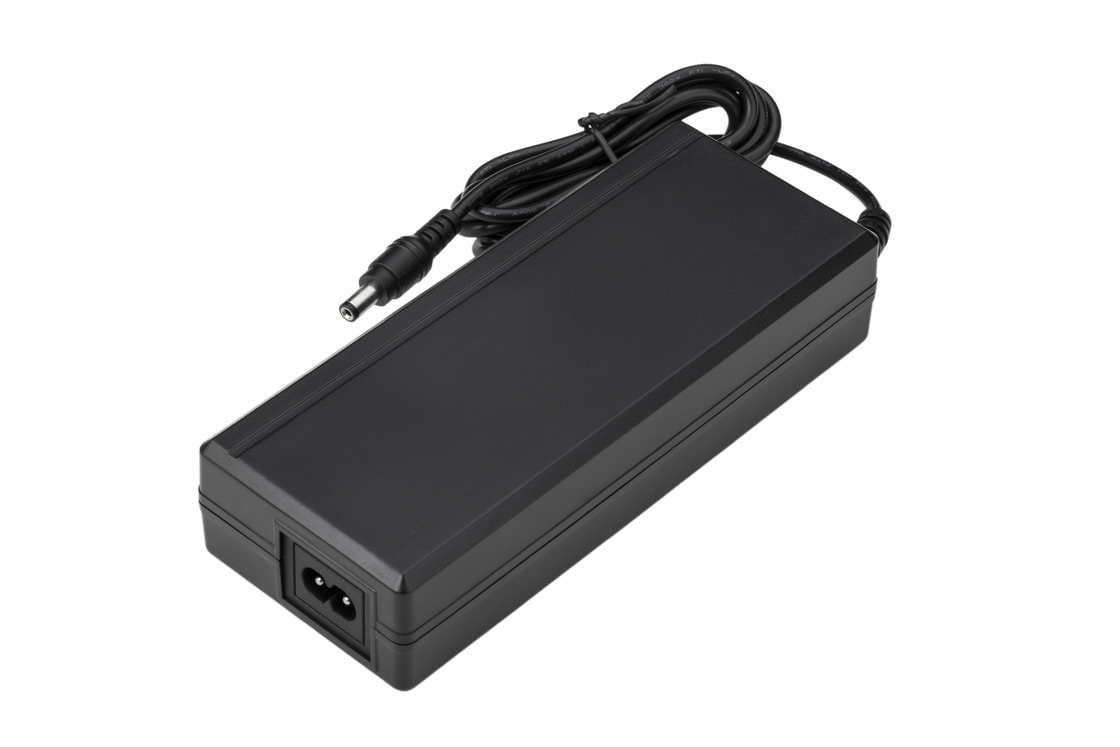

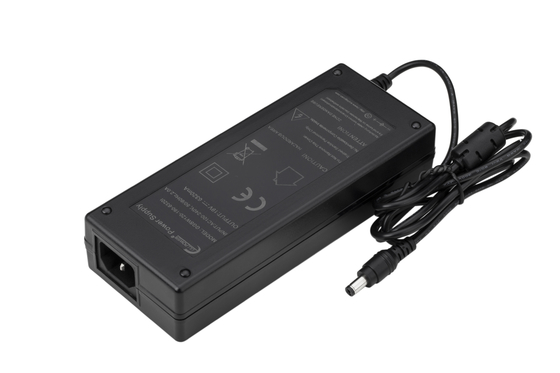

120W C6 C8 C14 AC DC Power Adapter 12V 10A 15V 8A 24V 5A 48V 2.5A
Product Details:
| Place of Origin: | China |
| Brand Name: | Fullpower |
| Certification: | FCC,UL,CE,UKCA,SAA,KC,PSE,CCC,etc |
| Model Number: | 17100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500PCS |
|---|---|
| Packaging Details: | Individul Pe Bag Packing or others |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000PCS/Day |
|
Detail Information |
|||
| Input: | 100-240V 50/60HZ | AC Socket: | C6 C8 C14 |
|---|---|---|---|
| Output: | DC 120W Max | Material: | ABS+PC |
| Color: | Black, White Or Others | Protection: | OCP, OLP, OVP And Others |
| Logo: | Fullpower Or Custom Made | Warranty: | 3 Years |
| High Light: | 120W AC DC Power Adapter,C6 AC DC Power Adapter,120W 12V DC Power Adapter |
||
Product Description
120W 12V10A 15V8A 24V5A 48V2.5A Desktop AC DC Power Adapter
• Max Output Power: 120W
• Typical output: 12V10A 15V8A 24V5A 48V2.5A etc
• UL,FCC,CE,CB,UKCA,SAA,KC,PSE,CCC,EAC etc for different countries
• Meet the US DoE level VI, EU CoC Tier 2 efficiency standards
| Data-sheet |
| FEATURES | SAFETIES APPROVALS | PRODUCTS PICTURE | |||||
|
v EFFICIENCY VI v 100-120W OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT |
Desktop Type
v UL, FCC v CB, CE, UKCA v CCC, KC, PSE v SAA v REACH, ROHS
|
 |
|||||
| TYPICAL MODEL LIST | |||||||
| I/P Voltage | Typical model | Output Voltage | Output Current | Ripple & noise | Efficiency Level | ||
|
90 - 264V 47 - 63HZ |
CGSW120A-120-10000 | 12V | 10000mA | 30mV | IIIIII 6 | ||
| CGSW120A-150-8000 | 15V | 8000mA | 40mV | IIIIII 6 | |||
| CGSW120A-180-6666 | 18V | 6666mA | 50mV | IIIIII 6 | |||
| CGSW120A-200-6000 | 20V | 6000mA | 70mV | IIIIII 6 | |||
| CGSW120A-360-3333 | 36V | 3333mA | 50mV | IIIIII 6 | |||
| CGSW120A-480-2500 | 48V | 2500mA | 50mV | IIIIII 6 | |||
| INPUT SPECIFICATIONS | GENERAL SPECIFICATIONS | ||||||
| Input Voltage | 90〜264VAC | Primary to Secondary | 50MΩ MIN | ||||
| Input Frequency | 47〜63Hz | Efficiency | VI | ||||
| Input Current | 1.5A Max | Standby Power | 0.5W MAX | ||||
| Inrush Current | 40A Max | Leakage Current | 0.25mA MAX | ||||
| OUTPUT SPECIFICATIONS | ENVIRONMENTAL SPECIFICATIONS | ||||||
| Output Voltage Range | 12.0V-48.0V | Operating Temperature | 10°C~40°C | ||||
| Output Current Range | 100mA-10000mA | Cooling | Convection | ||||
| Output Power Range | 120.0W Max | Temperature Coefficient | 0.05%/°C | ||||
| Short Circuit Protection | Automatic Recovery | Humidity | 5~95%RH(non-condensing) | ||||
| Over-Current Protection | Automatic Recovery | Storage Temperature | -20°C~+80%°C | ||||
| Ripple and Noise | 100mVp-p max | PHYSICAL SPECIFICATIONS | |||||
| Turn On Time | 20-30mS normal | Physical Specifications | 172.1mm *72.1mm *33.1mm | ||||
| Line Regulation | 1% max | SAFETIES STANDARD | |||||
| Output Regulation | ±5% | Safeties Standard | 62368 / 60950 / 60335 / 61558 / 60065 / UL1310 | ||||
| Certifications |
|
|
|
|
Factory Certification
ISO 9001 Quality management system
ISO 14001 Environment management system
BSCI Business Social Compliance Initiative Certificate
|
|
|
Safety Certificates
UL, FCC, CB, CE, UKCA, EAC, CCC, PSE, KC, KCC, RCM, C-TICK, SAA, BSMI, BIS etc
|
|
