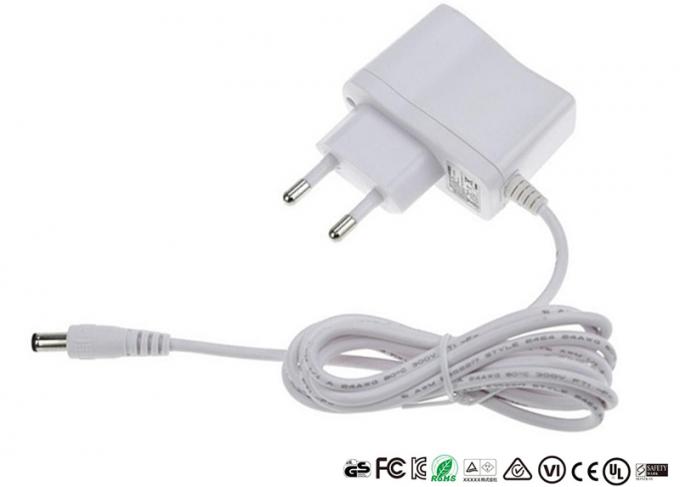

White 12V 0.2A 0.5A 500mA AC DC Adapter UL Listed With US EU UK EU PLUG

Certifications
Good quality Universal Power Adapter for sales
Good quality Universal Power Adapter for sales
I'm Online Chat Now

White 12V 0.2A 0.5A 500mA AC DC Adapter UL Listed With US EU UK EU PLUG

China White 12V 0.2A 0.5A 500mA AC DC Adapter UL Listed With US EU UK EU PLUG supplier
White 12V 0.2A 0.5A 500mA AC DC Adapter UL Listed With US EU UK EU PLUG supplier White 12V 0.2A 0.5A 500mA AC DC Adapter UL Listed With US EU UK EU PLUG supplier White 12V 0.2A 0.5A 500mA AC DC Adapter UL Listed With US EU UK EU PLUG supplier White 12V 0.2A 0.5A 500mA AC DC Adapter UL Listed With US EU UK EU PLUG supplier

Large Image :  White 12V 0.2A 0.5A 500mA AC DC Adapter UL Listed With US EU UK EU PLUG

Product Details:

Place of Origin: China
Brand Name: Haifyer
Certification: CE FCC UL GS BIS ROHS
Model Number: ZF120A-1200500U

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Blister Box first then come into a carton
Delivery Time: 15days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A
Supply Ability: 1200000PCs/Month
Contact Now
Detailed Product Description
Name: White 12V 0.2A 0.5A 500mA AC DC Adapter UL Listed With US EU UK EU PLUG Input: 100-240V (82-267V Max.) 50/60Hz
Output: 12V 500mA,0.5A Size: 58.5*48.1*23.5MM
Weight: 61.1g DC Cable: 1.2M

White 12V 0.2A 0.5A 500mA AC DC Adapter UL Listed With US EU UK EU PLUG





Features

1, Small sizedLight weight, compact easy for carrying
2, Full range Universal AC input 90-240V(82-267V AC max.)
3, No load power consumption less 0.09W
4, We have full safety approvals for all the world use.
5, Private Mould Housing and V0 level Anti Fire Material
6, Level SIX High efficiency
7, Short circuit,Over charge,Over load,over temperature protections.
8, 3 year quality warrant


Output ratings

Outout(V) Ouptput(A) Power DOE VI
12V 200mA 2.4W YES
12V

300mA

3.6W YES
12V 400mA 4.8W YES
12V 500mA 6.0W YES
12V 600mA 7.2W YES
12V 100mA 1.2W YES
Specifications
Model ZF120A-1200500
Mode Constant voltage
Input 100-240VAC(82-267V AC max.), 50/60Hz
Output 12V 0.5A 6.0W
Energy efficiency DOE VI
DC cord length 1.2m/1.5m/1.8m, etc.
DC jack size 5.5mm*2.5mm*8mm/5.5mm*2.1mm*8mm/3.5mm*1.35mm*12mm/4.0mm*1.7mm*12mm/2.5*0.7mm/5.5*1.0mm/4 pin, etc.
Dimension(L*W*H) 58.5*48.1*23.5MM
AC cord length 1.2m/1.5m/1.8m, etc.
AC plug AU/BR/US/EU/UK, etc.
Certifications GS /DOE VI/UL / CE / TUV / FCC / KC / SAA / RoHS
Protections Short circuit protection, over voltage protection, over current protection,drop resistance
Working environment -10°C~+41°C 5%~90%RH
Storage environment -20°C~+86°C 5%~95%RH
Cooling method Natural cooling down
RoHS compliant Yes
Warranty 3 years
Application Audio,Security cctv camera,Communication,Allicances,Modem,Router,Recliner massage chair,3D printer, Vending Machine,Water purifier,LED lighting,  medical, aptop, etc.

White 12V 0.2A 0.5A 500mA AC DC Adapter UL Listed With US EU UK EU PLUG

Applications
Visual Intercom; CCTV; ,Car-carried Refrigerator; Access System;Electric Blanket;Household Appliances;LCD Display;Vacuum Cleaner,Mini Electronic Device,Balance Car,Centrifuge;Audio Amplifier; Smart Home; Camera Equipment; Video Product; Air Purifier;Video Game Products; Router;Household Electric Fan; Massage Chair; LED strip;POS Machine; Security Surveillance System;Motor;  Audio Transmitter; Audio Converter; IT Products; Digital Image; Wearable Electronics; LED light; Car Starter;Pump; Nebulizer;  Air Cleaner;Communication Power Supply;3D printer; POE Server;LED Lighting,CCTV camera,Monitor,Printer,Door Systerm,Small Household Appliance,LED Driver,Powerline Wifi,Massage Chair,Laptop,Air Purifier,Air Humidifier,Medical Machine,LCD,Mobile Phone,MP3/MP4,Stereo Audio,Credit card terminal.......


FAQ
  • 1. How long is your product warranty?
  • A: All of our products have 3 years warranty..
  • 2. What's the advantage of your products?
  • A: Over 10 years of experiences in ac dc power supply,usb charger production and sales,worldwide certificates,high-quality products,guaranteed after-sale services;
  • 3. Are you accept OEM order?
  • A: Yes, OEM is always welcome, please feel free to contact us;
  • 4. What about delivery day?
  • A: For sample with existing products, we can ship it right away,for customized one, need 2-5 days; and for customer order products in great quantity, 6 to 13 days. Generally 14-22 days for customer OEM products.
  • 5. How about terms of payment?
  • A: Usually 50%TT as deposit,balance need to be paid before shipping,PayPal, Western Union, L/C is also okay.
